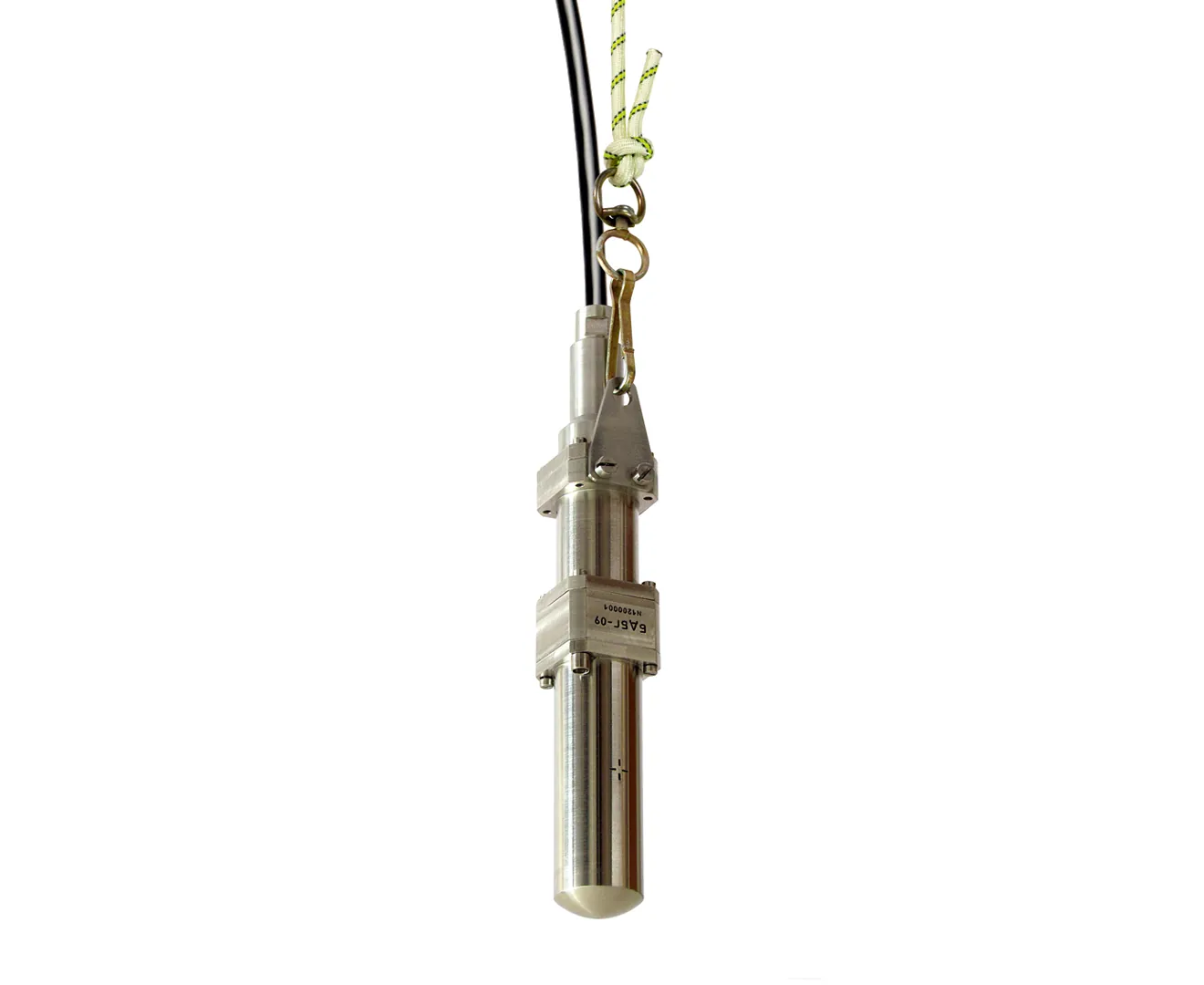

Detecting Unit BDBG-09 Water-Resistant Malaysia

Features
Gamma detecting unit based on the Geiger-Muller counter.

Hermetically sealed stainless steel housing.

Data exchange between the detecting unit and the data display system through RS-485 interface.

Constant self-testing.

Indication of the statistical measurement error.

Ingress protection rating – ІР68.

When immersed in water, the detecting unit is resistant to exposure of: water temperature from +3 to +60 °С; maximum depth of immersion in water – 20 m.

The detecting unit is resistant to sinusoidal vibrations according to regulatory documents.

Categories: ,

Description

BDBG-09 is used as a part of automated systems of radiation monitoring to measure ambient dose equivalent rate of gamma radiation in waterbodies and artificial reservoirs. The detecting unit is produced in hermetic stainless steel housing with IP68 ingress protection rating. Maximum depth of immersion – 20 m. When immersed in water the detecting unit withstands water temperature from +3 °С to +60 °С.

A standard version of BDBG-09 is produced with a built-in Geiger-Muller counter. A modification based on the scintillation detector is also available.
