RPD-AM RADIOLOGICAL POSTING DISPLAY MALAYSIA

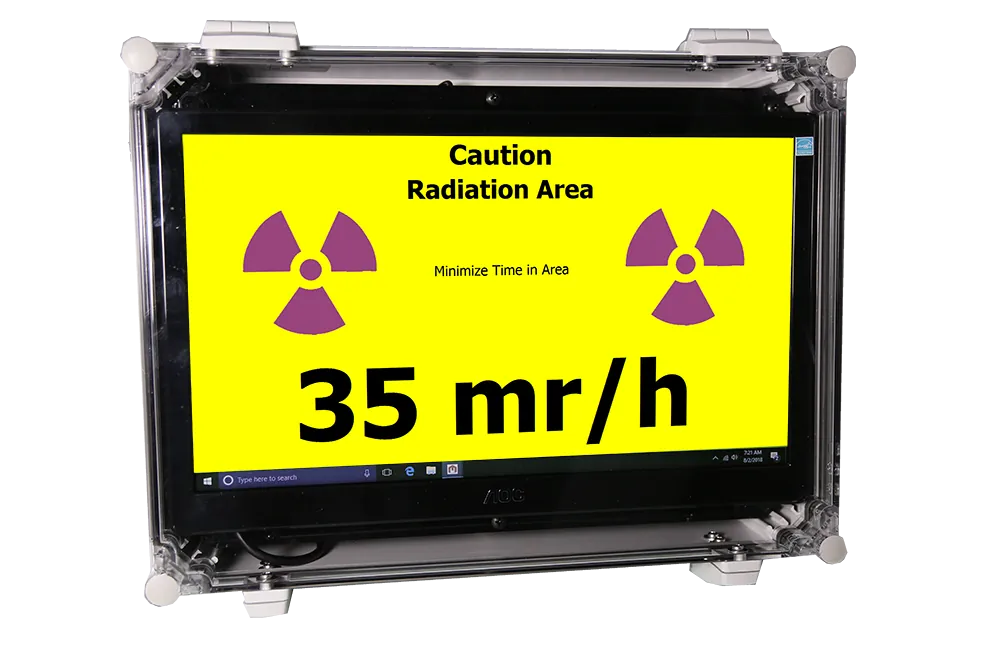

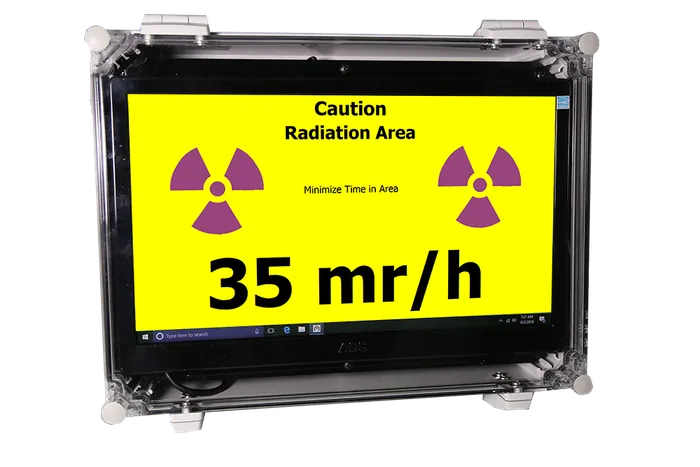

The RPD-AM display monitor is a self-contained gamma dose rate detector. Its large screen clearly displays ambient dose rates for the internal detector and/or external detector (RDS-31 meter and probe). It can also pick up other WRM2 system devices if connected to your network. Whether identifying a low dose rate Waiting Area or identifying a Radiation Area, the RPD-AM monitor lets workers know at a glance the conditions of their work area even from across the room. The RPD-AM monitor expands even further on the concept of worker dose rate notification: with its dynamic posting display software, the monitor automatically updates itself to indicate specific (user-defined) verbiage, symbols, and messaging for given conditions as the dose rates change. The RPD-AM monitor is designed to be rapidly deployed the
detector, display, and power hub are all pre-configured at the factory for use.

Enquire on WhatsApp Email enquiry

Category: Area Monitoring

Description

Qualifications

  • Self-contained, dynamic display of ambient radiological conditions
  • No battery change-out needed on either of the internal or external detectors
  • Displays dose rate information and transmits to existing WRM2™ system receivers (enabling remote monitoring of the deployed area)
  • It can also be setup to display as a radiological posting that will change automatically based on the dose rates in the area
  • The RDS-31™ meter version can utilize either a GM or SD version internal, and any of various dose rate probes externally
  • Audible alarm functionality can be enabled or suppressed (per configuration)
  • Provided with mounting brackets to secure as needed by the plant or simply set on a horizontal surface

RDS-31 Meters:
GM:
• Dose Rate Range: 0.01 µSv/h... 0.1 Sv/h or 1 µrem/h... 10 rem/h
• Dose Measurement Range: 0.01 µSv... 10 Sv or 1 µrem... 1000 rem
SD:
• Dose Rate Range: 1 µSv/h... 10 Sv/h or 0.1 mrem/hr... 1000 rem/h
• Dose Measurement Range: 10 µSv... 200 Sv or 1 mrem... 20,000 rem
External RDS Probes:
SD
• Dose Rate Range: 10 μSv/h - 10 Sv/h (0.1 mrem/hr - 1000 rem/hr)
GSD
• Dose Rate Range: 0.01 μSv/h – 10 Sv/h (1 µrem/hr – 1000 rem/hr)

  • Box Dimensions: 388 x 288 x 123 mm (15.28 x 11.34 x 4.84 in)
  • View Area: 16 in (406.4 mm)
  • Weight: 13 lbs (5.9 kg)
