RADIATION AREA MONITORING IT-09 MALAYSIA

SPECIFICATION
DER display range – 0.01-107 µSv/h.
The number of digits for DER display – three.
Three threshold levels programming in the range of 0.01 µSv/h to 9.99 Sv/h with 0.01 µSv/h discreteness.
Signaling when threshold levels exceeded – audio (with different soundings for each threshold level), and light (color change of DER measurement display).
Operation in the network through the RS-485 interface.
Power supply from the industrial network (220 V) through the power adapter.
Operating mode – 24-hour continuous.
Distance between the panel and the detecting unit – from 0.5 to 200 m.
Dimensions – not more than 345x135x40 mm.
Weight (without the power adapter) – 1.0 kg.
Mounting method – upright wall-mounted.

Operating Conditions
Air temperature from -20 to +50 °С.
Relative humidity – up to 95 % at +35 °С, and lower temperatures, non-condensing.
Atmospheric pressure – from 84 to 106.7 kPа.

Category:

Description

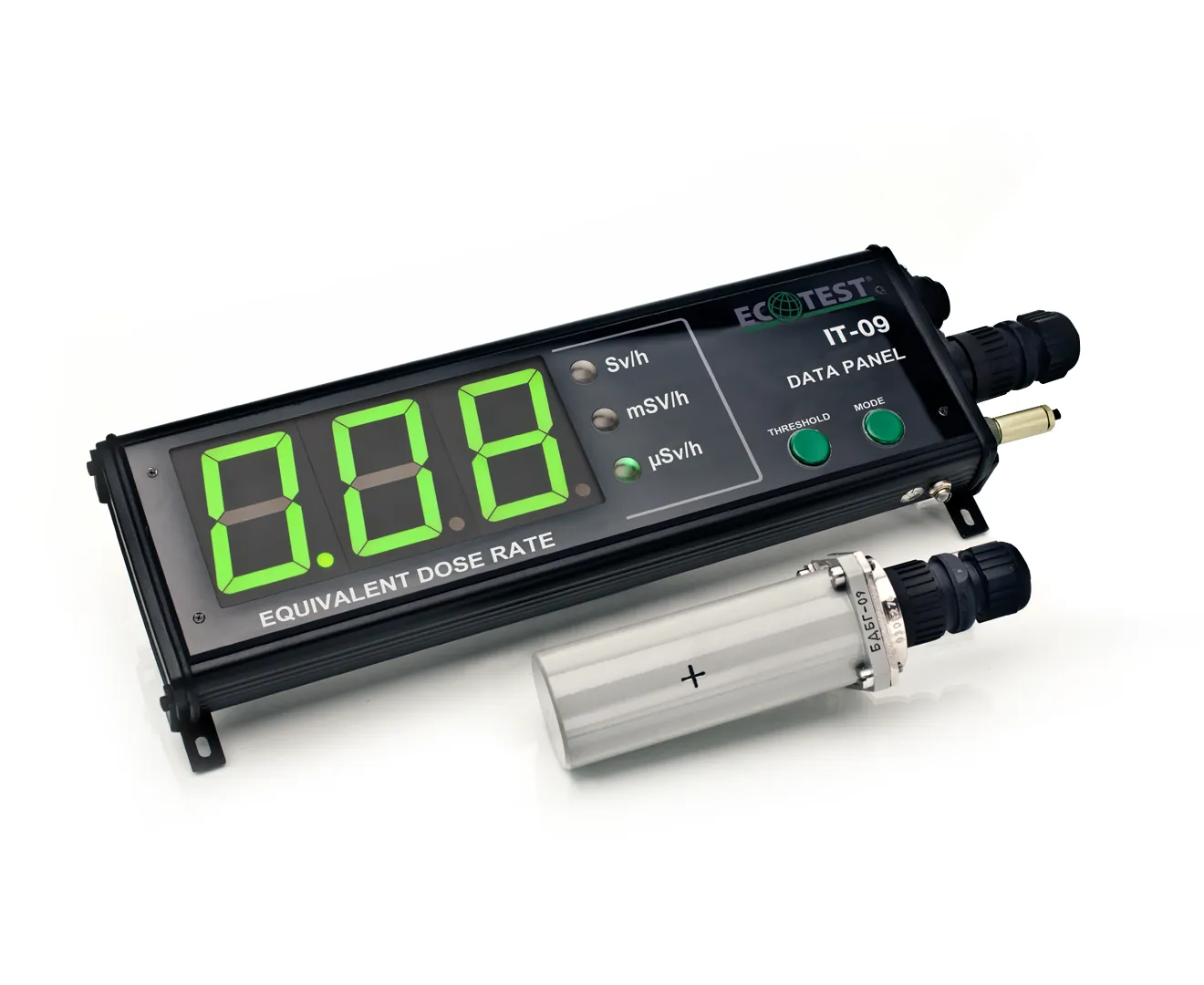

Proudly announce our new Area Monitoring product for the Malaysia market, Data Panel IT-09.Displays information about ambient dose equivalent rate of gamma radiation. The data is communicated from the BDBG-09 detecting unit of gamma radiation, which is included in the delivery kit. Measurement values are clearly visible from a large distance due to the size of the panel – 345x135x40 mm. If threshold levels of gamma radiation dose rate are exceeded, audible and light alarms are actuated.
