RADIATION AREA MONITORING IT-09T

SPECIFICATION
1. DER display range – 0.01… 107 µSv/h.
2. Number of digits for DER display– three.
3. Number of digits for real time display – four.
4. Number of digits for temperature display – two.
5. Operation in the network through the RS–485
6. Operating mode –24-hour continuous.
7. Distance between the panel and the detecting unit – from 0.5 to 200 m.
8. Dimensions –748x135x40 mm.
9. Weight (without the power adapter) – 2.05 kg.
10. Air temperature from -20 to +50 °С.
11. Relative humidity – up to 95 % at +35 °С.
12. Atmospheric pressure – from 84 to 106.7 kPа.

Category:

Description

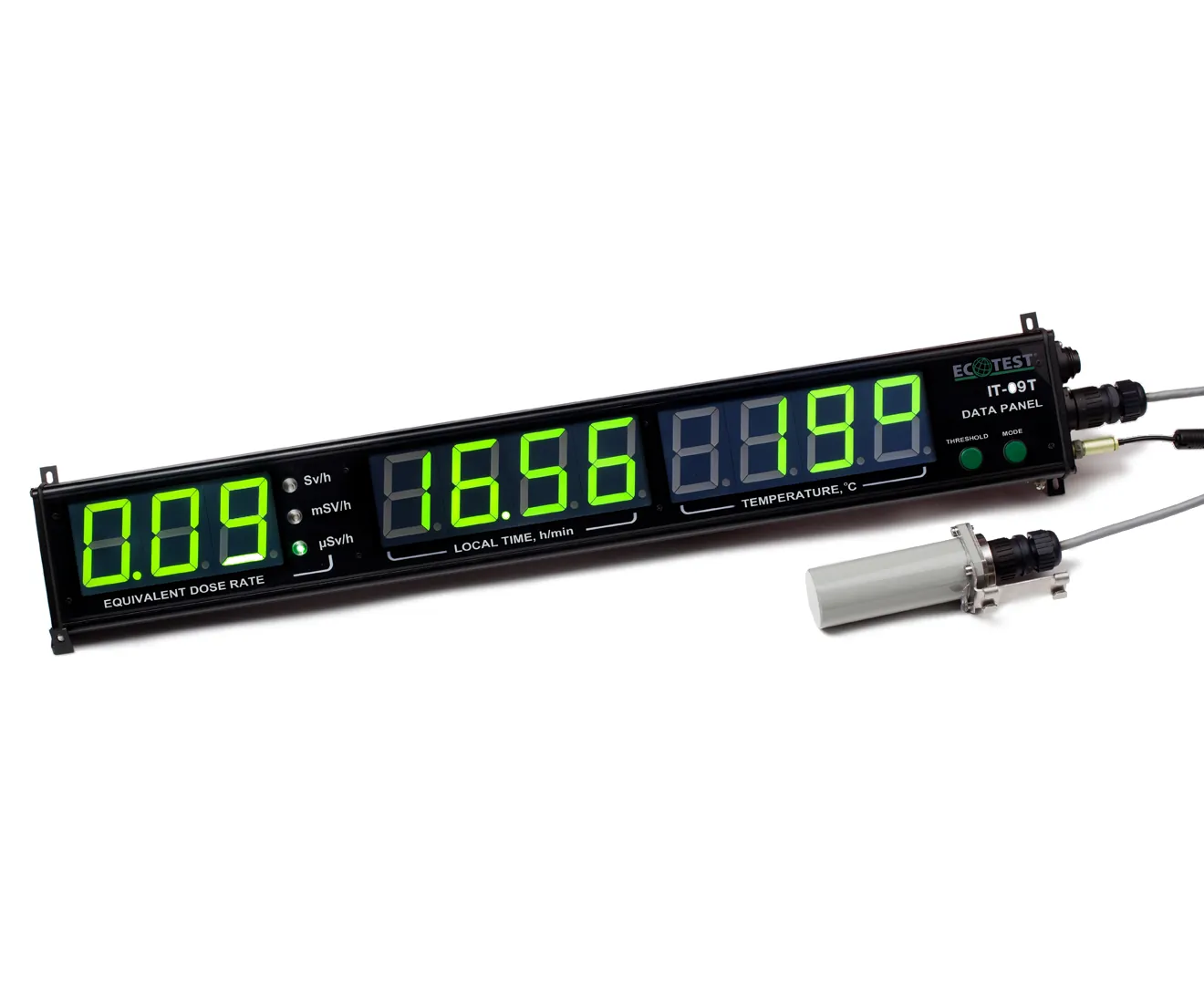

Displays information about ambient dose equivalent rate of gamma radiation, real-time, and temperature. The data is communicated from the BDBG-09 detecting unit of gamma radiation, which is included in the delivery kit. IT-09T data panel together with the BDBG-09 detecting unit and RadMonitor software allow the creation of an automated system for continuous monitoring of background radiation.

The panel with the units can be placed outside as well as inside for comprehensive control of the facilities. The distance between the data panel and the unit can reach 50m. All data is continuously transmitted to a personal computer that allows central monitoring of all objects.

Measurement values are clearly visible from a large distance due to the size of the panel – 748x135x40 mm. If threshold levels of gamma radiation dose rate are exceeded, audible and light alarms are actuated.
