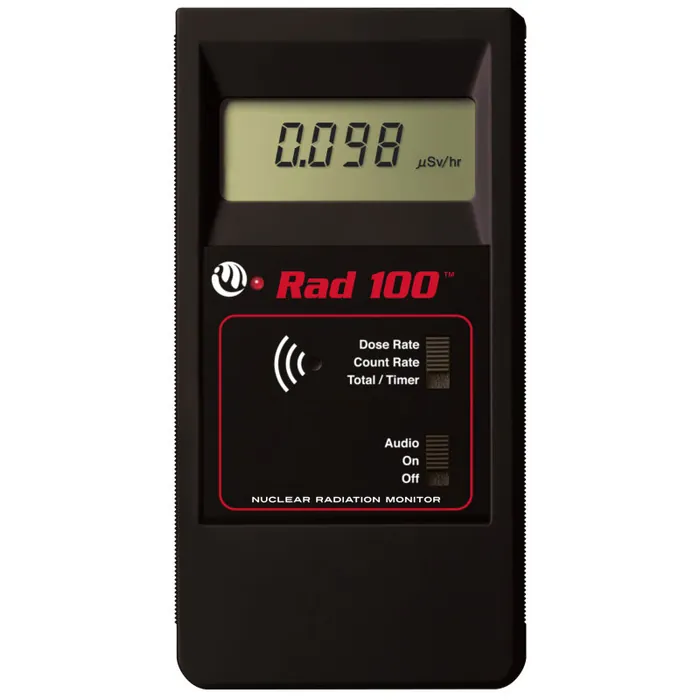

SURVEY METER RAD-100 MALAYSIA
Specifications
Sensor:
Halogen-quenched Geiger-Mueller detector (LND712)
Mica end window density is 1.5-2.0 mg/cm²
Side wall is 0.012″ #446 stainless steel
Detects Alpha, Beta, Gamma, and X-radiation
Display: 4-digit liquid crystal display with mode indicators
Accuracy: ±10% typical; ±15% maximum
Alert: No Alert feature. If your intended application requires a user-adjustable Alert, we recommend the Radalert® 100X
Audio: Beeper chirps for each count (can be muted)
Calibration: Cesium 137 (gamma)
Certifications: CE Certified, RoHS Compliant, and Meets WEEE standards
Count Light: Red LED flashes with each count
Operating Range:
µSv/hr: .000-1,100 CPM: 0-350,000
mR/hr: .000-110 CPS: 0-3,500
Total: 0-9,999,000 counts Timer: up to 40 hours
Options: Computer software and cable available
Ports:
Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices, and headphones, and educational data collection systems.0-9 V, 1 kOhm impedance.
Input: Mono 2.5 mm jack provides calibration input. 0-3.3 V, >5 μs width, rising edge triggered.
Power: One AA alkaline battery (one 9-volt alkaline battery on some models); average battery life typically exceeds 3600 hours at normal background radiation levels at sea level. Battery life decreases as radiation level rises.
Gamma Sensitivity: 1,000 CPM/mR/hr referenced to Cs-137
Size: 150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)
Weight: 225 grams (8 oz) including battery
Specifications subject to change without notice.
Description

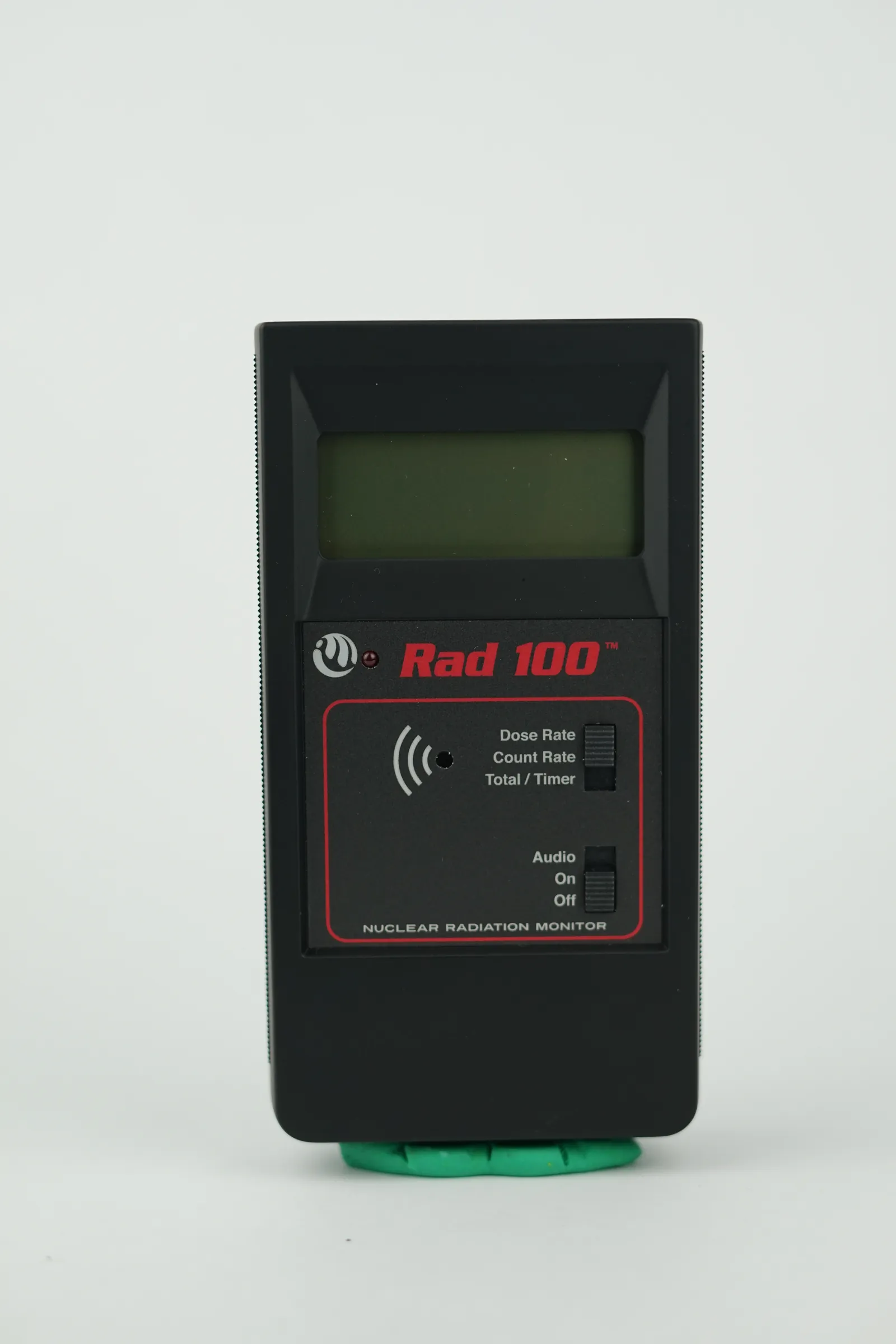

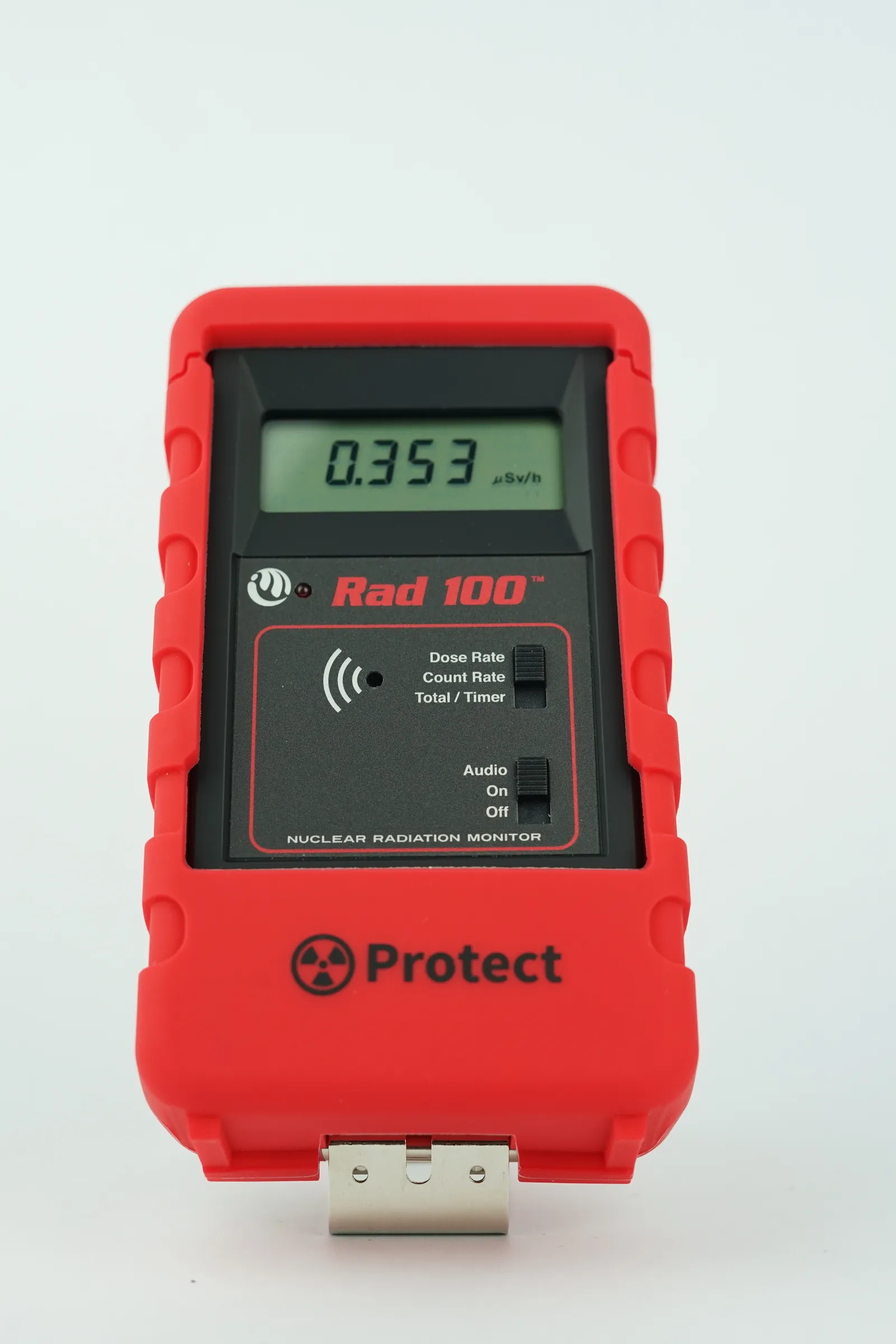

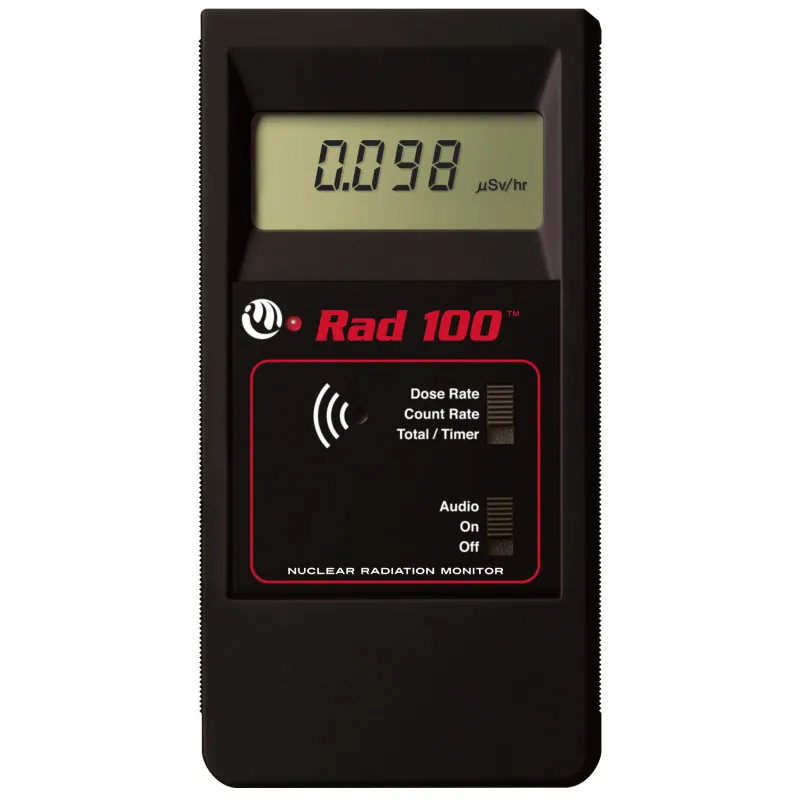

The RAD 100 survey meter Malaysia is a general purpose radiation survey meter/geiger counter that detects and measures alpha, beta, gamma, and X-radiation. It is intended for personal safety and educational purposes. Like the popular Radalert® 100X, the RAD 100™ features a 3-second update on its digital liquid crystal display (LCD). The LCD shows the current radiation level in your choice of microSieverts per hour (SI units) or mR/hr for gamma radiation measurements. For mixed sources (alpha, beta, gamma) the CPM mode is recommended. This instrument also offers an accumulated total and timer function, up to 9,999,000 counts and 40 hours. A red LED blinks and a beeper chirps with each count (the chirp can be muted). This is a professional instrument that is also easy to learn to use and to operate and carries the industry-leading.
